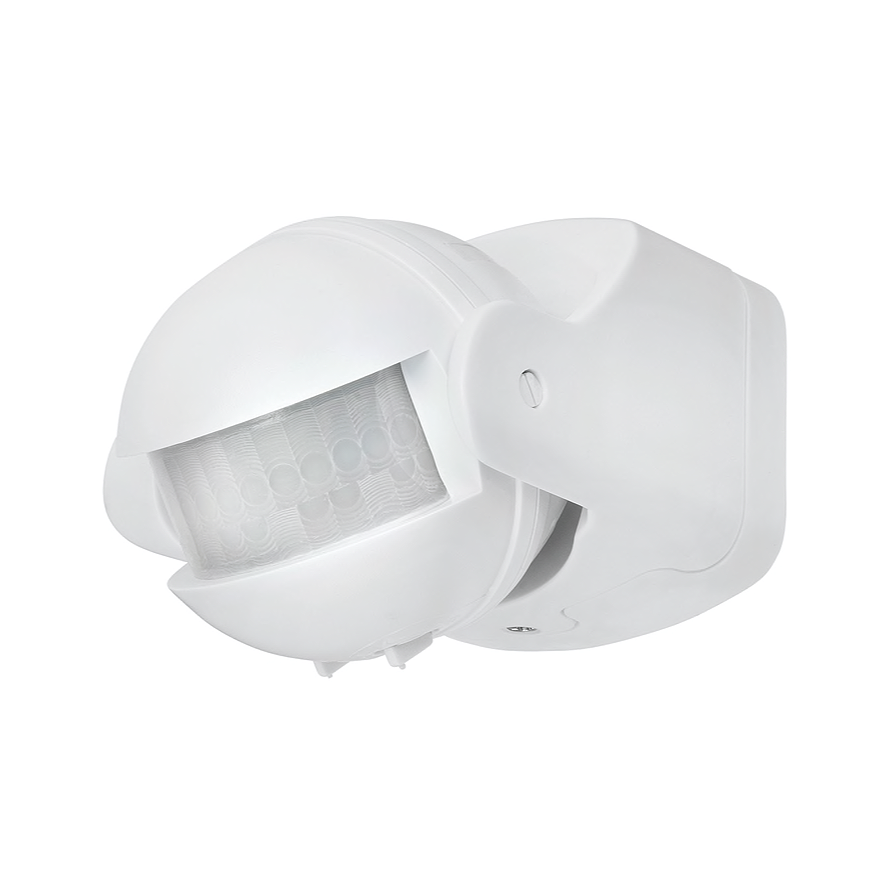

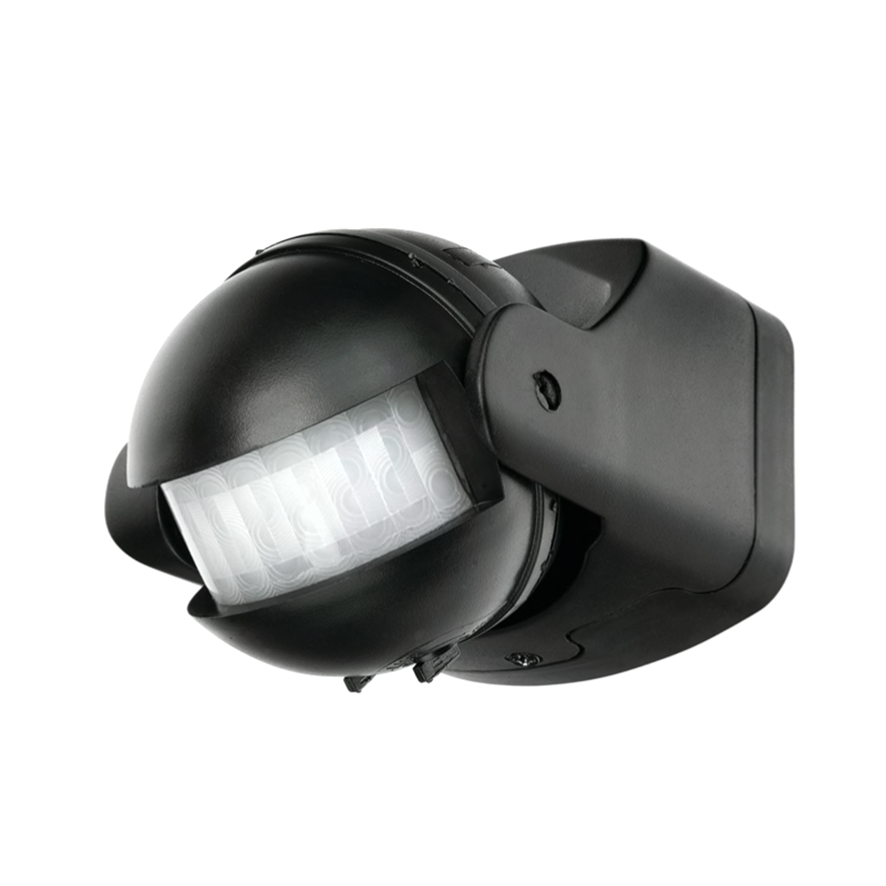

Uni-Scan 180º PIR Security Sensor

$30.00ex-GST · $33.00 inc-GSTIn stock

SKU: uni-scan-pir

Spec sheets and guides

Brilliant Uni-Scan passive Infra-red technology with multi-segmented optical lens for better detection. Reliable 3-wire design. Adjustable time on, sensitivity and lux level. Manual over-ride functionality. Resets to AUTO mode after 8 hours. Wall or ceiling mount. Sensor detection range of 12m x 180°. Flexible, adjustable arm. IP44 weather-resistant rated. Recommended for balconies, garages and entrances. Available in Black or White. Only $30.00 each +GST

1
  • Australian certified
  • Perth stock & support
  • Fast WA delivery

Specifications

CategorySecurity/Sensors Lights
InstallationMust be installed by a licensed electrician
Motion DetectingPassive Infra-Red technology
LensMulti-segmented lens for better movement detection
Product FinishWhite or Black
Maximum Load1200W Incandescent, 300w Fluorescent, 150W LED
FittingWall Mount
Sensor Range180 Degrees x 12m, 2.5m from ground
Lux Control Level3-2000 Lux (Adjustable)
Time Setting10sec - 20min
Manual OverrideYes, resets to Auto mode after 8 hours
ConstructionUV Resistant Polycarbonate
Weather RatingIP44
Warranty2 Years

You might also need

Good to know

Uni-Scan 180º PIR Security Sensor: at a glance

The Uni-Scan 180º PIR Security Sensor (code uni-scan-pir) is part of the Greenhse security and sensor light range. Key figures as listed: IP44; warranty 2 Years. It is sold online at greenhse.com and at the Ellenbrook showroom in Perth, WA.

Questions and answers

Where can the Uni-Scan 180º PIR Security Sensor be used, and what is its IP rating?

Its listed rating is: IP44. As a guide, IP44 is splash resistant (bathrooms, under eaves). Ask your electrician which rating the spot needs, or call us.

Do I need an electrician to install the Uni-Scan 180º PIR Security Sensor?

Listed installation: Must be installed by a licensed electrician. Listed fitting: Wall Mount. Installation guides and spec sheets are on the installation page.

What options does the Uni-Scan 180º PIR Security Sensor come in?

Options you choose on this page: Uni-Scan PIR Trim Colour: Uni-Scan Black, Uni-Scan White.

What warranty does the Uni-Scan 180º PIR Security Sensor have?

The warranty listed for the Uni-Scan 180º PIR Security Sensor is: 2 Years. A Greenhse warranty covers manufacturing faults. It doesn't cover physical damage, incorrect installation, modification or power surges.

How do I buy the Uni-Scan 180º PIR Security Sensor, and can I pick it up in Perth?

Order it online at greenhse.com, by phone on (08) 9297 2969, by email to sales@greenhse.com.au or at the Ellenbrook counter (5/1 Locke Ln, Ellenbrook WA 6069). Click & Collect from the Ellenbrook showroom is free, we deliver across the Perth metro area, and freight outside Perth is quoted. We need a street address (no PO Boxes or parcel lockers) and ship within Australia only. Every price is shown both ex GST and inc GST, in Australian dollars. Stock is held in Perth; if this page shows it out of stock, call (08) 9297 2969 for the arrival date.

Can I return the Uni-Scan 180º PIR Security Sensor?

Unused items in their original, resaleable packaging can be returned within 30 days with your receipt for a refund or exchange. Strip cut to length, special orders and fittings that have been installed can't be returned for change of mind. If something arrives damaged or faulty, contact us straight away with a photo on (08) 9297 2969 or sales@greenhse.com.au. Full details are on the returns and shipping page.

What is the Uni-Scan 180º PIR Security Sensor made of?

Listed construction: UV Resistant Polycarbonate. Shade, housing or finish: White or Black.

What are the other specifications of the Uni-Scan 180º PIR Security Sensor?

Motion detecting: Passive Infra-Red technology. Lens: Multi-segmented lens for better movement detection. Maximum load: 1200W Incandescent, 300w Fluorescent, 150W LED. Sensor range: 180 Degrees x 12m, 2.5m from ground. Lux control level: 3-2000 Lux (Adjustable). Time setting: 10sec - 20min. Manual override: Yes, resets to Auto mode after 8 hours.
