LED Strip Lights

12w/m SMD Strip Light High Lumen

$16.00ex-GST · $17.60 inc-GSTIn stock

SKU: st24v-12w-SMD

Spec sheets, guides and videos

NEW HIGH LUMEN 12W SMD STRIP LIGHT 24V – Premium-quality professional display lighting for any space. • IP65 Waterproof • Very bright up to 1800 lumens/metre • Only 12w/m - very efficient, recommended for under kitchen cabinets • 240 LEDs per metre • High colour accuracy (80+) for accurate display lighting • Dotless light when installed in an aluminium channel with diffuser • 24V for lower heat and longer lengths (up to 10 metres) • 5m Single feed / 10m dual feed • 2700k/3000k/4000k/5700k • Aluminium channel recommended - acts as a heat-sink for a longer lifespan • Transformer required • Wide range of optional receivers and controllers available • WiFi, full SMART control on Smart devices • Remote Controllers available • Amazon Alexa and Google Home compatible NB We are unable to ship/post channels due to risk of damage and constraints imposed by couriers. $16.00 +GST per metre for 12w/m Warm/Natural/Bright White, IP65 waterproof Pricing depends on a number of variables such as length of strip, controller/receiver, transformer size, choice of remote, channel type etc. Specifications may vary dependent on availability. NB: Due to the level of complexity including the very large number of options available and to ensure you select the correct product for your application, please research your requirements carefully. We recommended you confirm your requirements with your electrician.

Build your strip light kit

Loading the kit builder…

  • Australian certified
  • Perth stock & support
  • Fast WA delivery

Key features

  • IP65 Waterproof
  • Very bright up to 1800 lumens/metre
  • Only 12w/m - very efficient, recommended for under kitchen cabinets
  • 240 LEDs per metre
  • High colour accuracy (80+) for accurate display lighting
  • Dotless light when installed in an aluminium channel with diffuser
  • 24V for lower heat and longer lengths (up to 10 metres)
  • 5m Single feed / 10m dual feed
  • 2700k/3000k/4000k/5700k
  • Aluminium channel recommended - acts as a heat-sink for a longer lifespan
  • Transformer required
  • Wide range of optional receivers and controllers available
  • WiFi, full SMART control on Smart devices
  • Remote Controllers available
  • Amazon Alexa and Google Home compatible

Specifications

CategoryLED Strip Lights
UseProfessional quality, modular, very high brightness, thin strip lighting in 12w/metre . Suitable for under kitchen cabinets. Recommended to be installed by a licensed electrician.
BrightnessUp to 1800 lumens/metre & 240 LEDs/metre
Power12w per metre
Beam angle120º
DimmableDimmable (with appropriate receiver)
Lifespan50 000 hrs
Fitting2-Sided tape Channel options available
Specifications24V DC
Weather RatingIP65 Waterproof
MaterialPCB/Silicon Gel (model dependent)
Dimensions10mmx2.2mm
Instant startInstant start
Light Output Color2700k/3000k/4000k/5700k
Colour Rendering Index80+
Shade/Housing3oz White PCB
Warranty2Yr limited, Needs to be installed by qualified electrician, excludes physical damage.
CertificationRCM, CE

You might also need

Good to know

12w/m SMD Strip Light High Lumen: at a glance

The 12w/m SMD Strip Light High Lumen (code st24v-12w-SMD) is part of the Greenhse LED strip light range. Key figures as listed: 12w per metre; Up to 1800 lumens/metre & 240 LEDs/metre; 2700k/3000k/4000k/5700k; IP65 Waterproof. It is sold online at greenhse.com and at the Ellenbrook showroom in Perth, WA, priced per metre.

Questions and answers

How long can one run of the 12w/m SMD Strip Light High Lumen be?

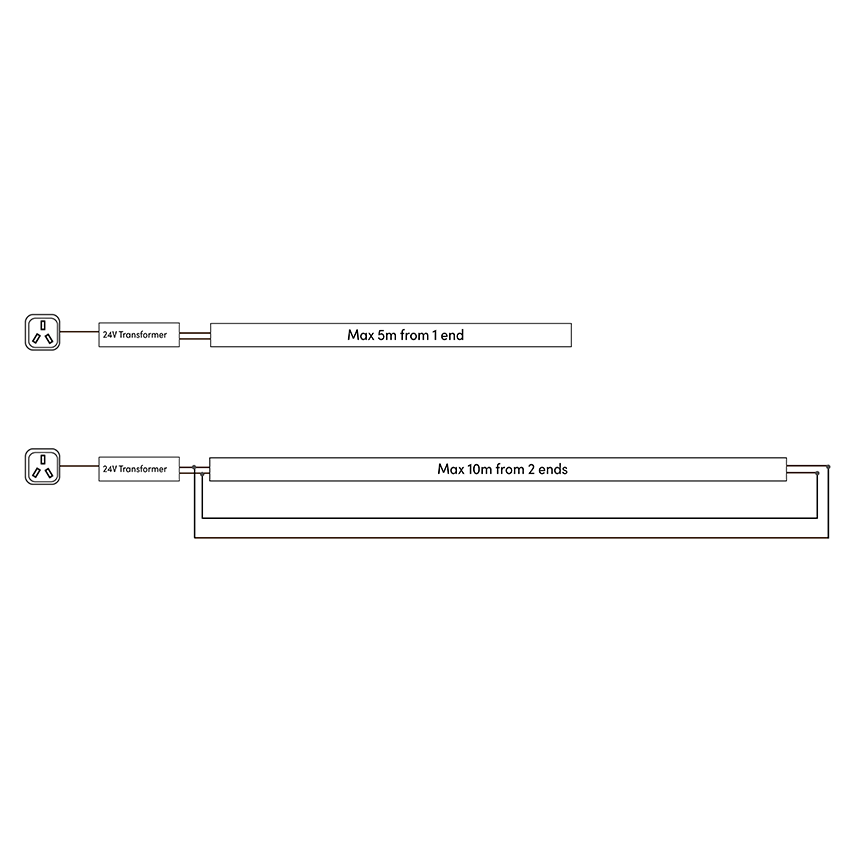

It is listed for up to 5 metres on a single feed and up to 10 metres on a dual feed. A transformer is required.

Will I see the LED dots with the 12w/m SMD Strip Light High Lumen?

It has 240 LEDs per metre and gives a dotless light when it is installed in an aluminium channel with a diffuser.

Is the 12w/m SMD Strip Light High Lumen suitable under kitchen cabinets?

Yes. It is recommended for under kitchen cabinets and is IP65 waterproof. An aluminium channel is recommended because it acts as a heat sink for a longer lifespan.

Can I control the 12w/m SMD Strip Light High Lumen from my phone or a remote?

Yes, with the right receiver or controller. It is dimmable with an appropriate receiver, remote controllers are available, and smart control works over WiFi and is compatible with Amazon Alexa and Google Home.

How bright is the 12w/m SMD Strip Light High Lumen?

Listed brightness: Up to 1800 lumens/metre & 240 LEDs/metre. Power: 12w per metre. Beam angle: 120º.

What colour light does the 12w/m SMD Strip Light High Lumen give?

Listed light colour: 2700k/3000k/4000k/5700k. Colour rendering index (CRI): 80+.

Can the 12w/m SMD Strip Light High Lumen be dimmed?

Yes. Its dimming is listed as: Dimmable (with appropriate receiver). Have your licensed electrician confirm the dimmer or controller is compatible before you buy.

What size is the 12w/m SMD Strip Light High Lumen?

Listed dimensions: 10mmx2.2mm.

Where can the 12w/m SMD Strip Light High Lumen be used, and what is its IP rating?

Its listed rating is: IP65 Waterproof. As a guide, IP65 is for outdoors and wet areas. Ask your electrician which rating the spot needs, or call us.

Do I need an electrician to install the 12w/m SMD Strip Light High Lumen?

In Western Australia all 240V lighting must be installed by a licensed electrician, and we recommend a licensed electrician installs and connects every product, including 12V and 24V strip, transformers, controllers and star lights. Greenhse supplies the products and your electrician installs them. Listed fitting: 2-Sided tape Channel options available. Installation guides and spec sheets are on the installation page.

What do I need to run the 12w/m SMD Strip Light High Lumen?

24V strip runs from a transformer and can be cut on the marked cut lines. A full setup needs the strip, a transformer sized to the length of the run, a controller if you want dimming or colour, and usually an aluminium channel with a diffuser for a clean, dotless line. The Strip Light Finder on the strip lights page asks four questions and builds the full kit.

What options does the 12w/m SMD Strip Light High Lumen come in?

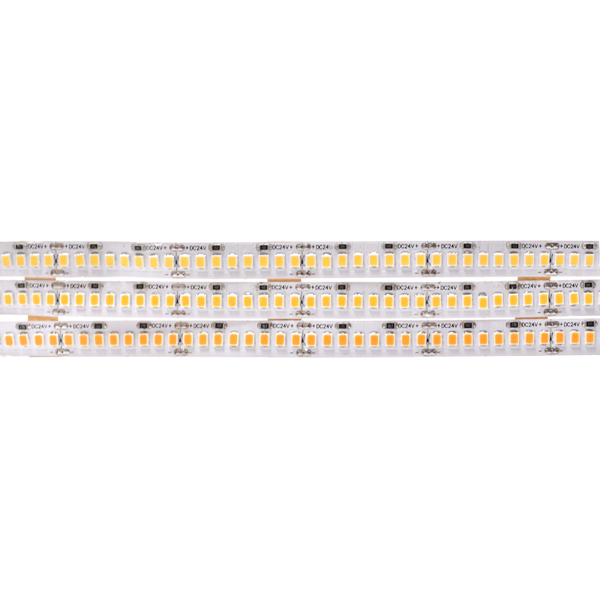

Options you choose on this page: Strip Light Colour Temperature: Warm White (2700k), Warm White (3000k), Natural White (4000k), Bright White (5700k).

What warranty does the 12w/m SMD Strip Light High Lumen have?

The warranty listed for the 12w/m SMD Strip Light High Lumen is: 2Yr limited, Needs to be installed by qualified electrician, excludes physical damage. A Greenhse warranty covers manufacturing faults. It doesn't cover physical damage, incorrect installation, modification or power surges.

How long does the 12w/m SMD Strip Light High Lumen last?

Listed lifespan: 50,000 hrs.

How do I buy the 12w/m SMD Strip Light High Lumen, and can I pick it up in Perth?

Order it online at greenhse.com, by phone on (08) 9297 2969, by email to sales@greenhse.com.au or at the Ellenbrook counter (5/1 Locke Ln, Ellenbrook WA 6069). Click & Collect from the Ellenbrook showroom is free, we deliver across the Perth metro area, and freight outside Perth is quoted. We need a street address (no PO Boxes or parcel lockers) and ship within Australia only. Every price is shown both ex GST and inc GST, in Australian dollars. This product is priced per metre. Stock is held in Perth; if this page shows it out of stock, call (08) 9297 2969 for the arrival date.

Can I return the 12w/m SMD Strip Light High Lumen?

Unused items in their original, resaleable packaging can be returned within 30 days with your receipt for a refund or exchange. Strip cut to length, special orders and fittings that have been installed can't be returned for change of mind. If something arrives damaged or faulty, contact us straight away with a photo on (08) 9297 2969 or sales@greenhse.com.au. Full details are on the returns and shipping page.

What power supply does the 12w/m SMD Strip Light High Lumen need?

Listed power supply: 24V DC.

What is the 12w/m SMD Strip Light High Lumen made of?

Listed construction: PCB/Silicon Gel (model dependent). Shade, housing or finish: 3oz White PCB.
